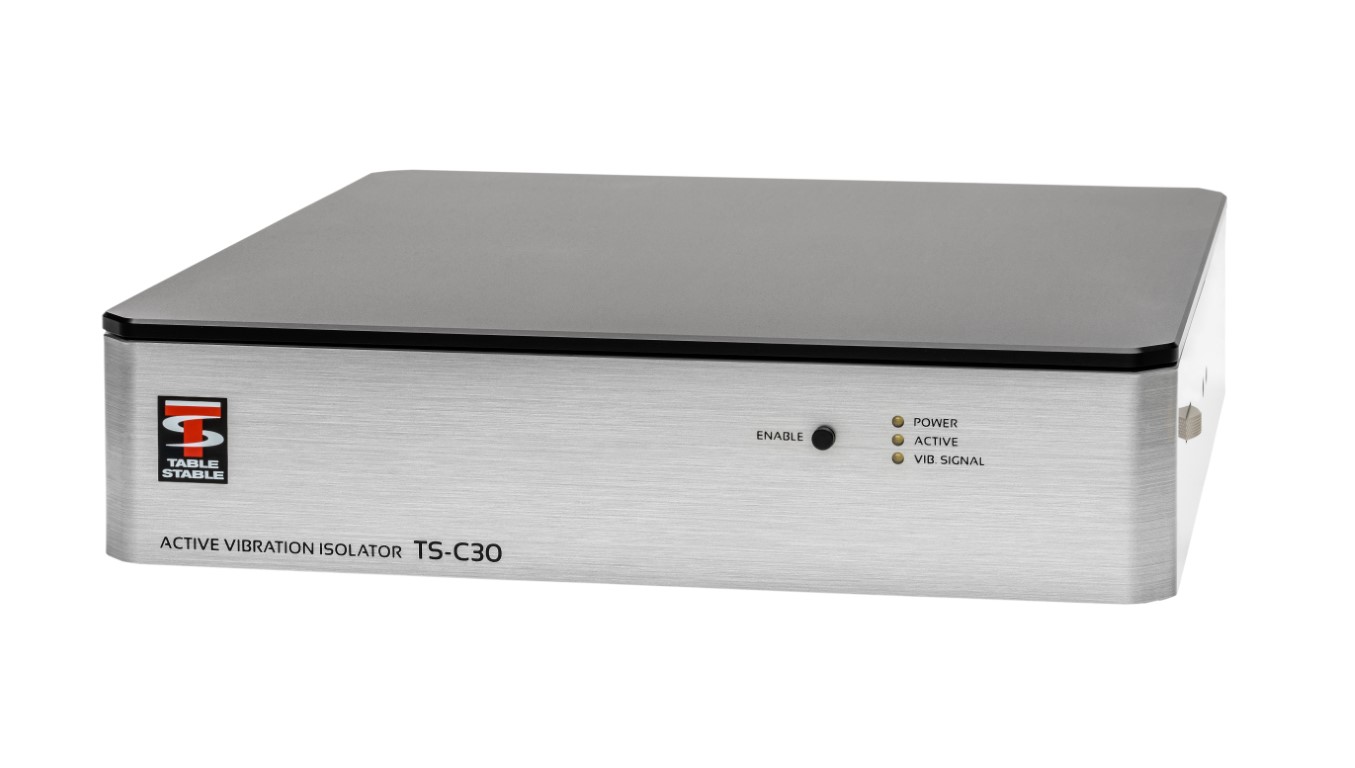

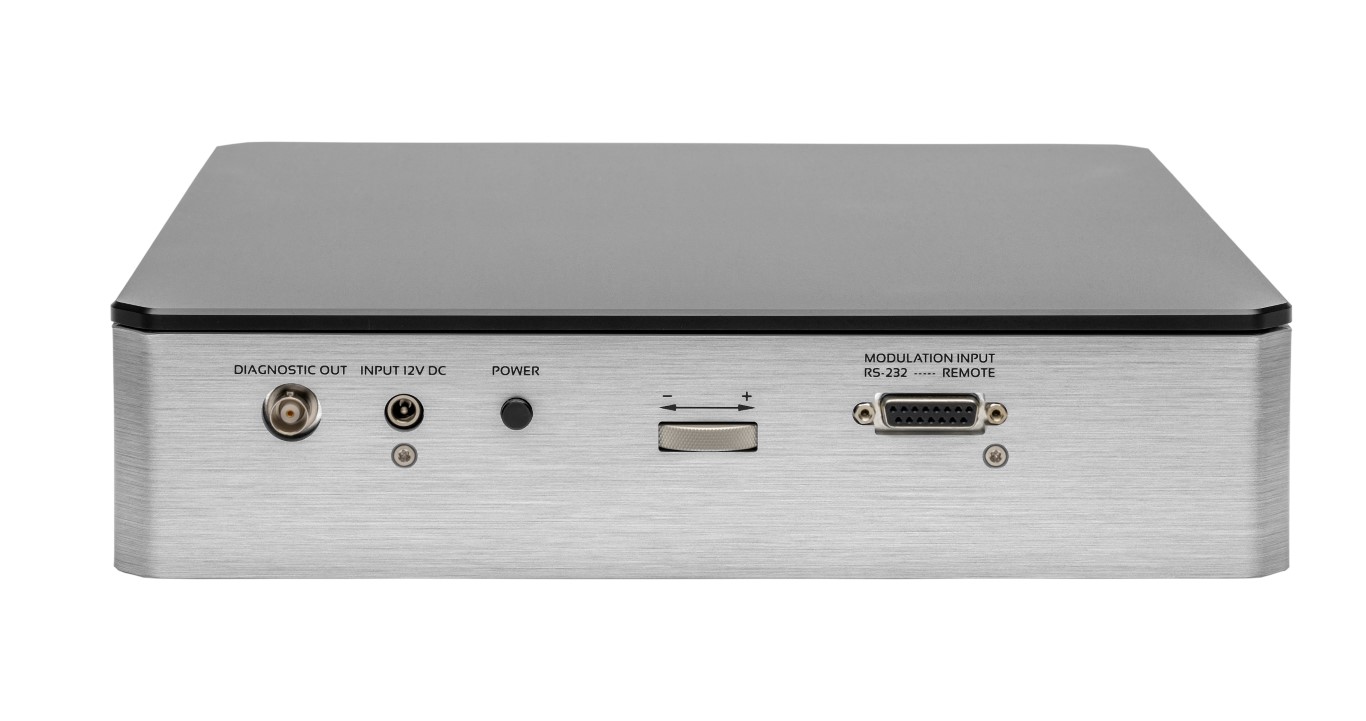

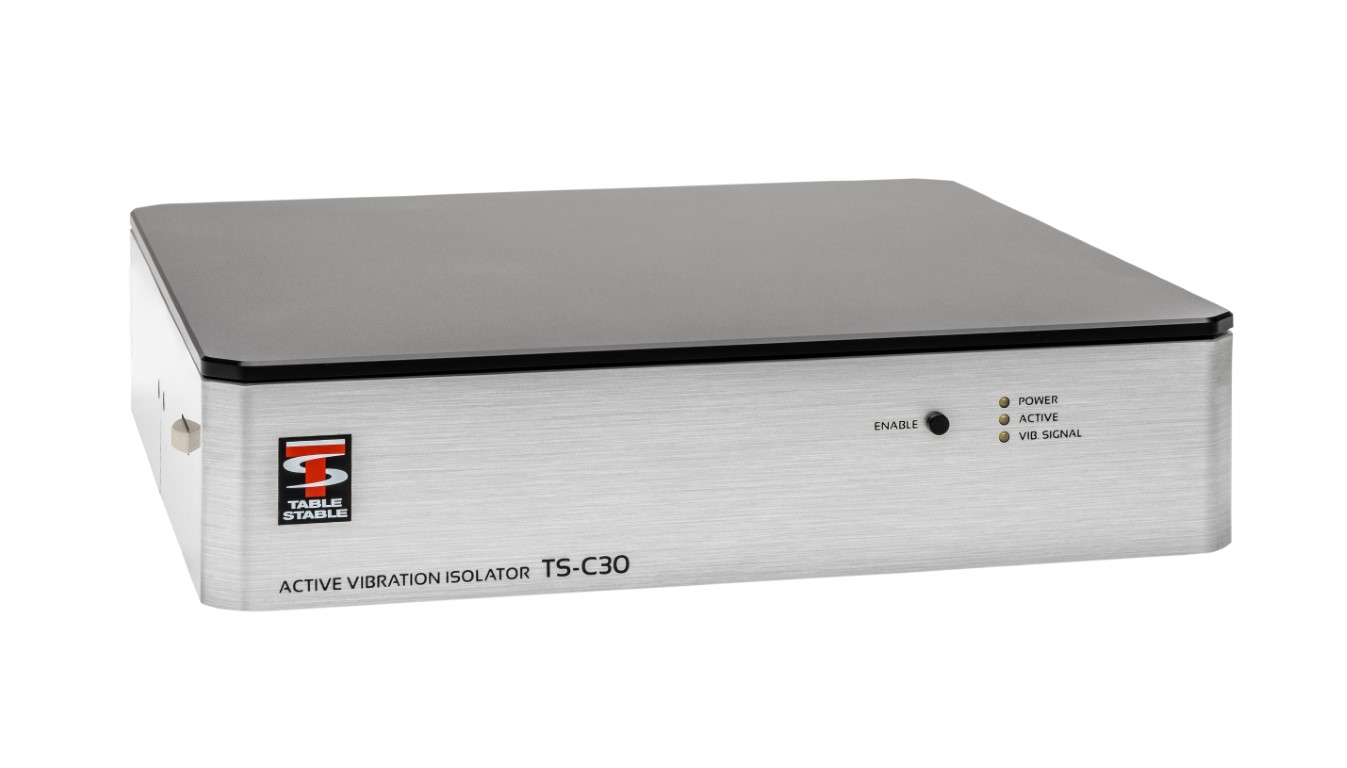

TS-C30
.jpg)
Description
The TS-C series are compact dynamic antivibration systems, which offer isolation against all six translational and rotational vibration modes.
These moderately priced dynamic vibration isolation systems achieve in a very small volume better isolation than is possible with the biggest and most expensive passive systems. Inertial feedback using piezoelectric force motors provides not only isolation from building vibrations, but also isolation from vibration sources placed on the system itself. This means, for example, that a delicate microscope isolated by the system will remain at rest despite forces being applied via the operator's hands.
The inherent stiffness of the systems, some 25 times greater than that of a 1 Hz resonance passive isolator, imparts excellent directional and positional stability.
The characteristics of an active isolation system are typified by the virtual lack of any low frequency resonance, a resonance which plagues all passive isolation systems.
The systems have been designed to offer excellent isolation even at frequencies as low as 2-3 Hz, where many buildings show large horizontal amplitudes due to oscillation about the vertical axis. Isolation begins at about 0.7 Hz, increasing rapidly to at least 40 dB beyond about 10 Hz.
All the control circuitry is built into the unit. Power consumption is less than 2.5 W. The unit has a universal input and may be connected to any AC power point from 100 to 240 VAC
The design has been optimized to achieve best possible isolation for delicate instruments such as the Scanning Probe Microscopes (AFM, STM), Interferometers and other high resolution instruments, allowing the ultimate performance to be achieved from these instruments. The tables have also proved to be extremely successful for supporting sensitive experiments, such as patch clamp, microinjection or the troughs for liquids used in measurements on Langmuir-Blodgett films.
Technical Specifications:
| Frequency: | 1.2 - 300 Hz |
|
Load range: |
0 - 40 kg |
|
Dimensions: |
300 x 300 x 70 mm ( L x W x H ) 11.8 x 11.8 x 2.75" |
| Isolation: | Dynamic 1.2 Hz to 300 Hz, mainly passive at higher frequencies |
| Transmissibility: | above ~10 Hz transmissibility < 0.01 (-40 dB) |
| Correction Forces: | ±8N vertical, ±4N horizontal |
| Static compliance: | 27 µm/N |
| Maximum Load (load in centre): | 40 kg 88.18 lbs |
| Weight: | 9.2 kg 20.3 lbs |
| Electrical: | |
| Safety class: | 1 |
| Power Consumption: | max 2.50 W |
| Input Voltage: | 100 – 240 VAC, 50 – 60 Hz |
| Monitor signal: | A multiplexed signal for display on oscilloscope shows vibration levels with and without isolation – for diagnostic purpose only. |
| Table Top: | |
| Size: | 300 x 300 mm |
|
Material: |
solid aluminium plate |
