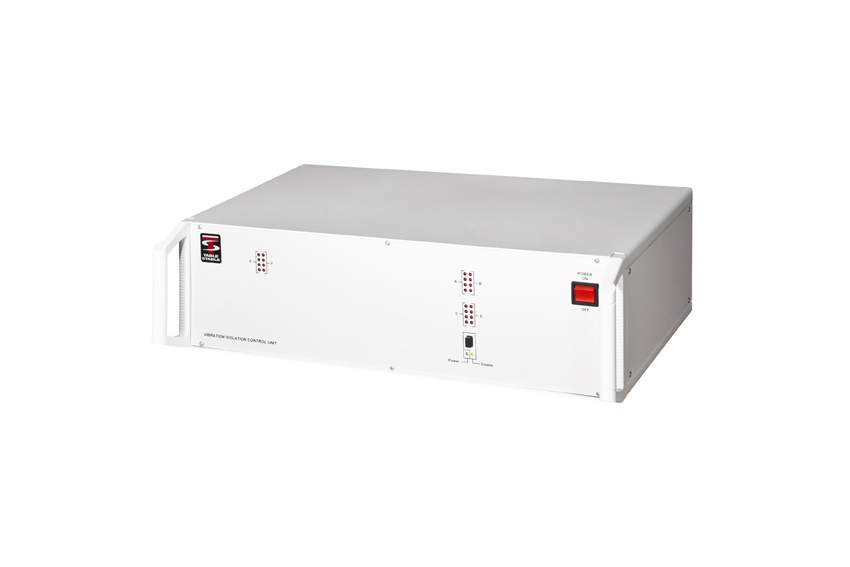

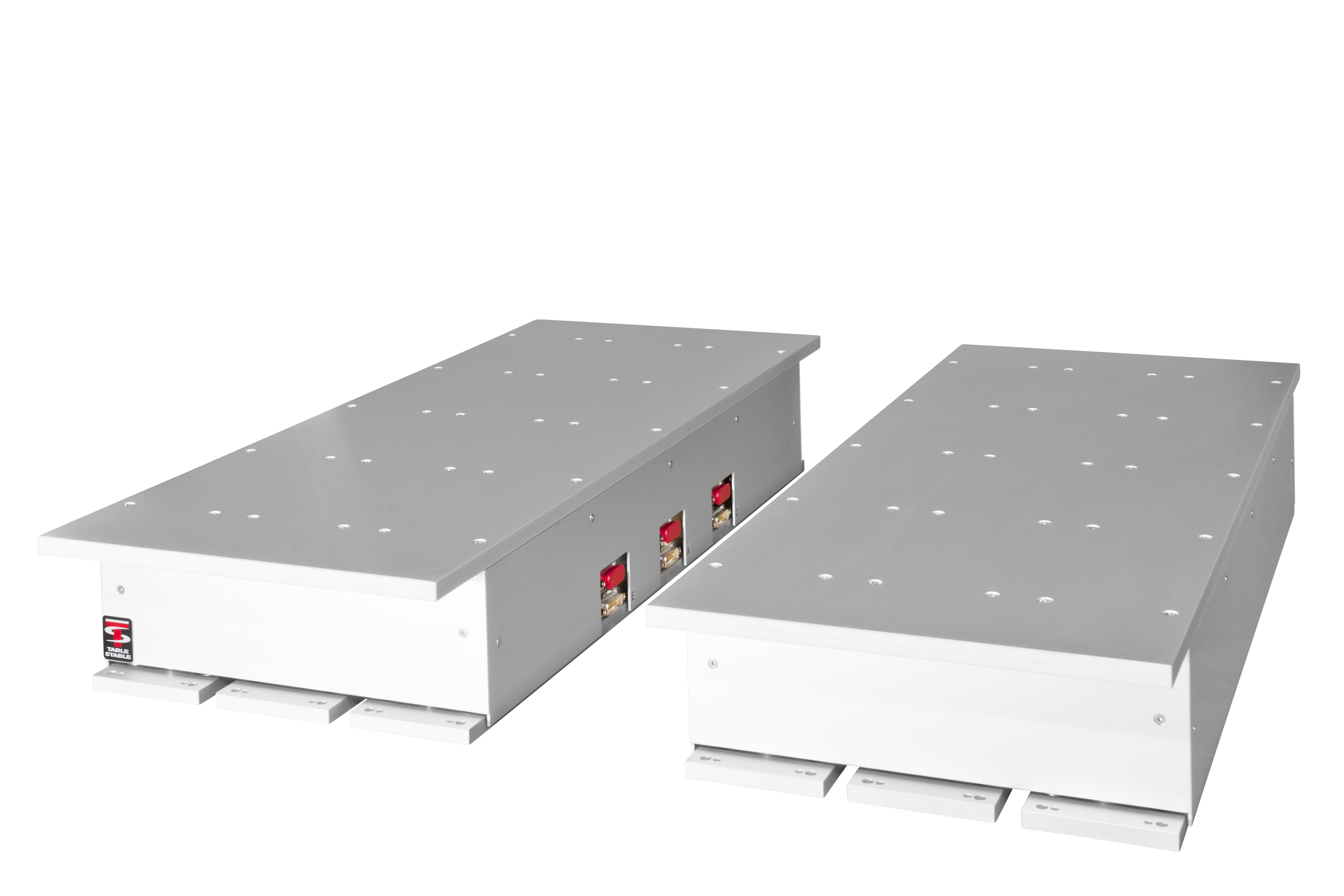

These easy to install isolators protect delicate high resolution measurement instrumentation against disturbing influences such as building vibrations and forces introduced directly into the equipment by the operator.
Frequency: 1 - 200 Hz
Load range: 0 - 1200 kg
(single element): 600 kg
Dimensions: | Top plate: 720x288 mm Bottom plate: 636x280 mm Height: 112.5 mm |
Isolation:
|
dynamic 1 Hz to 200 Hz passive beyond 200 Hz
|
Transmissibility:
|
see attached curve Above 10 Hz transmissibility < 0.017 (-35db)
|
Correction Forces:
|
Horizontal max. 12 N, vertical max. 24 N
|
Static Compliance:
|
approx. 1 µm/N vertical and 2 µm/N horizontal
|
Maximum Load:
|
1200 kg
single unit: 600 kg |
Weight:
|
29 kg (single unit)
|
Electrical
|
|
Safety class:
|
1
|
Power Consumption:
|
typically 27W
|
Input Voltage:
|
90-125VAC / 200-250VAC
+/- 10% , 50 - 60 Hz
|
Overload:
|
24 LEDs indicate overload in input stages
|
Monitor signal:
|
A multiplexed signal for display on oscilloscope shows vibration levels with and without isolation -For diagnostic purpose only -
|
