Vibration Isolation

TS-140

Description

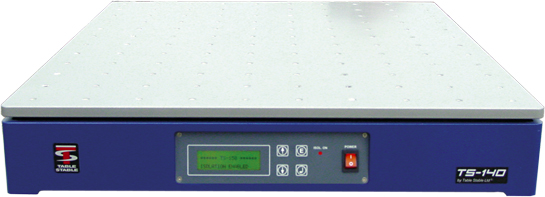

The  TS-140  combines proven technical excellence with elegant and user friendly design
This medium-sized dynamic vibration isolation system is ideally suited for all applications which need more space on the top plate than is achievable with the TS-150.
Drilled top plates with holes in metric (M6 x 25mm) or non-metric grid allow mounting of various equipment on the isolated table top.



The  TS-140  combines proven technical excellence with elegant and user friendly design

The  isolation of the  TS-140 begins at 0,7 Hz,  increasing rapidly to 40db beyond 10Hz
The lack of any low frequency resonance means much better performance than with most common passive air damping approaches
The inherent stiffness of the TS systems imparts excellent directional+positional stability
The outstanding performance of the TS 140 includes all six translational and rotational vibration modes
The precise automatic height adjustment mechanism stabilizes the top plate at an optimized working level even after major changes of load
A remote control allows the isolation to be switched  “ON” and “OFF” externally

User friendly, practical handling advantages are the result of an innovative construction concept

Height of TS-140 only 84 mm
Weight of TS 140 only 28.5 kg

Additional Info

Technical Specifications:

Frequency
Load range
Dimensions
0.7 to 300 Hz active - passive over 300 Hz
0    -   140 kg
500 x 600 x 84 mm



Isolation:

 0.7 Hz to 300 Hz (active) , passive beyond 300 Hz

Transmissibility:

see attached curve   Above 10 Hz trans- missibility < 0,01 (-40dB)

Correction Forces:

+/- 8 N vertical

+/- 4 N horizontal

Static Compliance:

approx. 12 µm/N vertical
approx. 30-40 µm/N
horizontal

Maximum Load:

140 kg

Size:

500 x 600 x 84 mm

Weight:

28.5 kg

Electrical



Safety class:

1

Power Consumption:

maximum 10W

20W during load adjustment

Input Voltage:

115 - 230 V  AC +/- 10% 50 - 60 Hz

Overload:

The display indicates when the load is too heavy or severely unbalanced

Monitor signal:

A multiplexed signal for display on oscilloscope shows vibration levels with and without isolation - for diagnostic purposes only

Front panel Display menu:

Displays instrumental status including: - height adjustment
- isolation ON / OFF
- overload
- transportation locking
- technical hot-line

Table top



Size:

500 x 600 mm

Material:

Damped Aluminium sandwich construction
Also available with tapped M6 on 25mm
or customised
